OVLFR3C7
Manufacturer:
TT Electronics
Mfr.Part #:
OVLFR3C7
Datasheet:
Description:

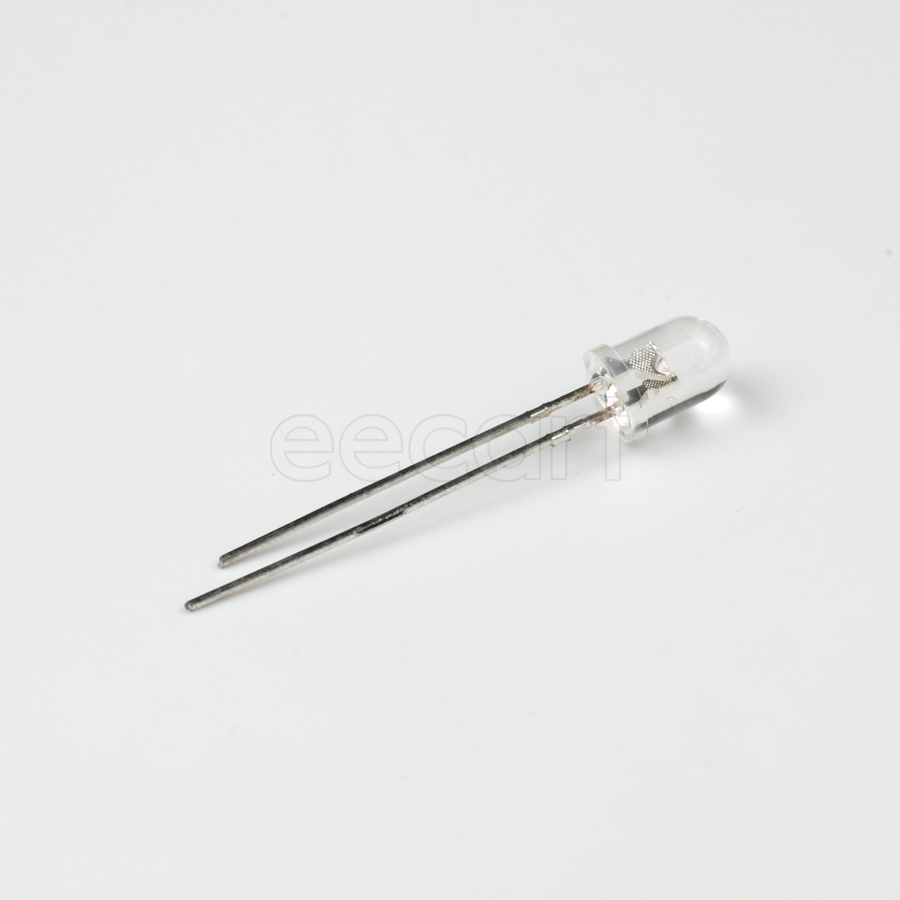

LEDs 5.00mmD×8.70mmH Through Hole Red 589 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 5.05 mm |
| Width | 5.05 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 8.7 mm |
| Packaging | Reel |
| Depth | 5.05 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lead Length | 23.9 mm |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Power Dissipation | 78 mW |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Clear |
| Luminous Intensity | 7.4 cd |
| Power Dissipation | 120 mW |
| Number of LEDs | 1 |
| Viewing Angle | 30 ° |
| Wavelength | 630 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Peak Wavelength | 633 nm |
| Dominant Wavelength/CCT (K) | 589 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 20877
Distributors
pcbx
pcbxUnit Price$0.14980
Ext.Price$0.14980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14980 | $0.14980 |
| 10 | $0.14563 | $1.45630 |
| 50 | $0.14158 | $7.07900 |
| 100 | $0.13765 | $13.76500 |
| 500 | $0.12514 | $62.57000 |
| 1000 | $0.12082 | $120.82000 |
| 3000 | $0.11665 | $349.95000 |
| 5000 | $0.11262 | $563.10000 |
| 10000 | $0.10950 | $1095.00000 |
